Powdered Sintered Metal Parts
We have been working for the sintered metal parts for more than 10 years.
This made us linked with a several factories in China and Japan. Each factories has strengthen on their own technology and also the limitation of the specs individually , therefore, we will work together with all each factory in order to make a wide range of solution for all issues such as the performance, the specifications, and we are experience to make a solution in engineering and cost issue both.

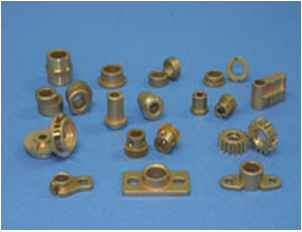

Bush and Gear

Features
Basic materials: the Iron, Copper, Stainless steel are available.
Material mixing: material development in order to satisfy the performance & specification required
by customers.
Material Origin: Beside from Europe, China materials are also available to satisfy the cost issue.
Outer-dia: up to Max,150mm
Gear precision: JGMA 2 is possible for mass-production.
Gear shape: The Herical Gear is available with our technology of production.
Treatment: The steam-treatment is available in house.

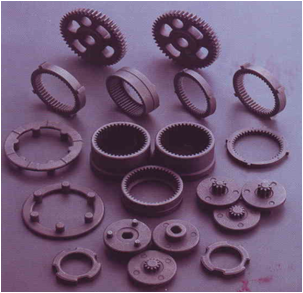

Products available Sleeve Bearing, Gears, Pulleys, Couplings, etc…
Sintered Metal Solution
|
Material available (*) |
JIS standard, the others blended base on customer requirements |
|
China made materials |
Available |
|
Size (outer Dia) |
150 mm |
|
Hardness |
650Hv |
|
Surface roughness |
3.2Ra (inner Dia 0.8Ra) |
|
Gear precision |
JGMA Grade 2 |
(*) JIS standard Material : SBK 1218, SMF4040, SMF5040..........etc.



|
|
|
 |
|
